Volcano Classic Replacement Switch Green SR-06NR-G
Purchase
Price: $8.49
Product ID : SR-06NR-G
Weight: 0.04
Share:
More images
Click to enlarge
Description
Green Replacement Rocker Switch fits Volcano Classic and Bissell 37603 Vacuums SR-06NR-R 16 A 125 VAC, 8 A 250 VAC

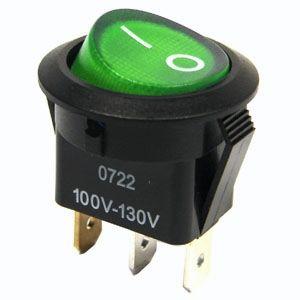

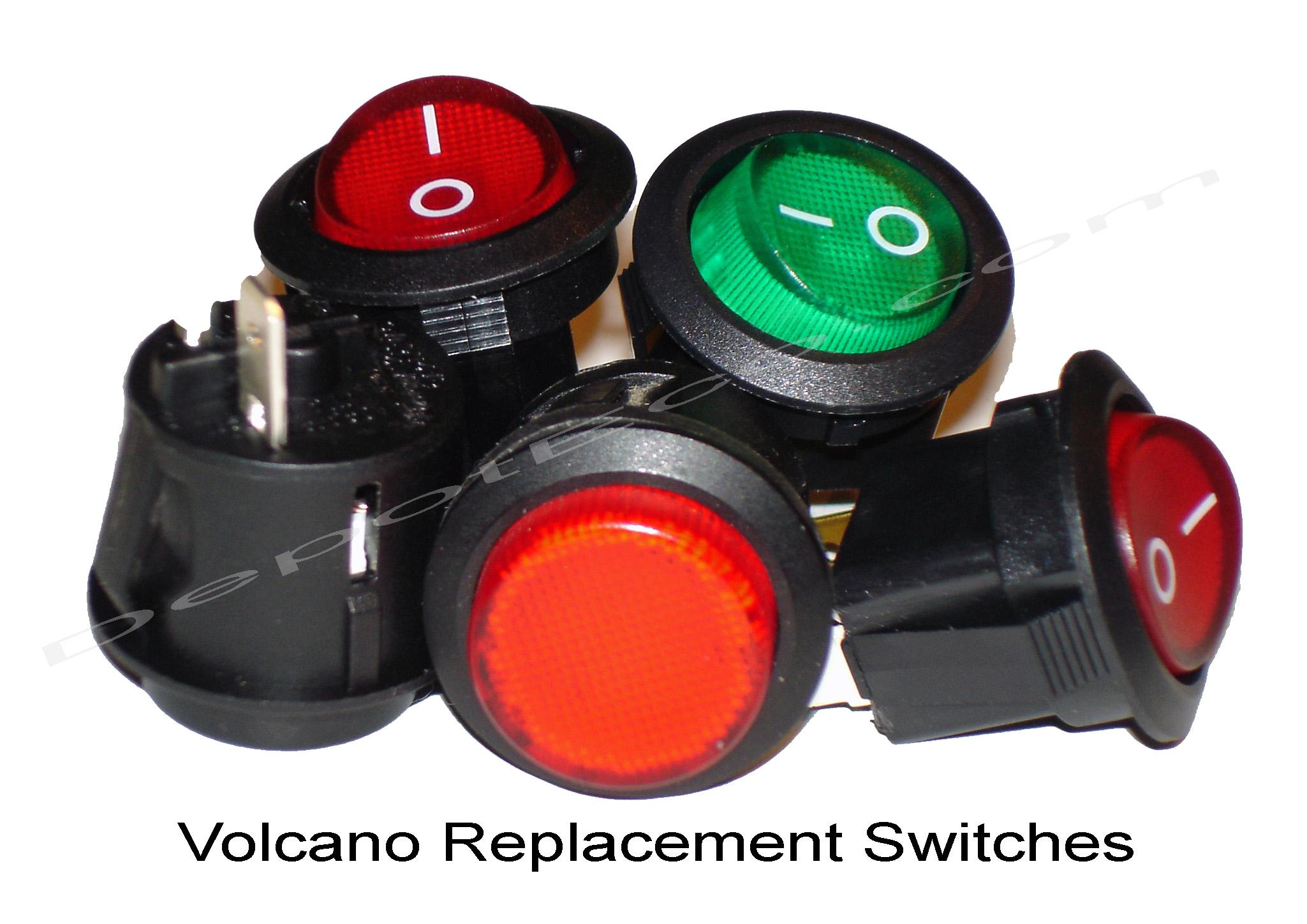

- Green Replacement rocker switch fits Volcano Classic.
Note, Replacement switch top will have on off markings as pictured - Model SR-06NR-G-110V Illuminated rocker switch. OEM SR-06NR model switch as supplied in your unit.
- 16 A 125 VAC, 8 A 250 VAC
- ON - OFF 3 pins - Light 110 VOLTS
- Fits Volcano Classic - this Switch is suitable for Heat or Air replacement locations. Also Found in some Bissell 37603 Vacuums
- Warranty is good for 30 days after your receipt. Please contact us if you need a replacement with in the 30 days.

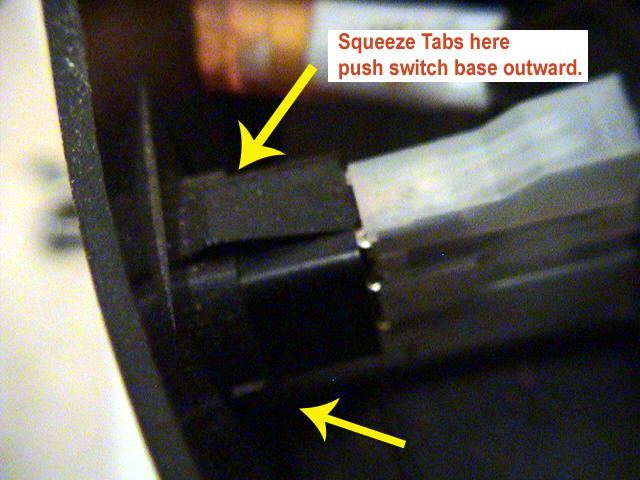

Replacement Rocker Switch for your Volcano Classic. Illuminated rocker switch 16 A 125 VAC Easy Replacement at home no need to ship off your Volcano, Simply pop out your broken switch, pop in your new switch and plug in the 3 wires. You will be up and running in minutes.
Note, this item is not authorized for resale without our prior written consent. Please beware of imposters selling our wares, buy your Volcano replacement switch from DepotEco.
See Link Below for installation.
Volcano Switch Replacement Instructions Click To Read.
You will need a Torx screwdriver tool to remove the case screws. Older Volcano units shipped with T8 Torx Screws and then began shipping with T8 Security Torx screws. Newer units also now ship with a T10 Security Torx screw.
(Please verify your screw types T8 or T10)
CSA Standards
Certified to CAN / CSA C22.2 No. 55:This is the switch standard for Canada designed to go into other low voltage (below 600V) appliances. This receive the “CSA Mark” or if combined with a USA approval, the “cCSAus Mark”.
Certified to ANSI / UL 1054:
This is the switch standard for the USA for UL recognized component switches designed for low voltage (below 600V) appliances. This will get the “CSAus mark” or if combined with a Canada approval, the “cCSAus Mark”.
Video
Product Reviews
Login or Register to write a review.
Reviewed by Customer Review
on Nov 11, 2014
on Nov 11, 2014
This is a perfect replacement switch for the Volcano Classic
Verified Purchase

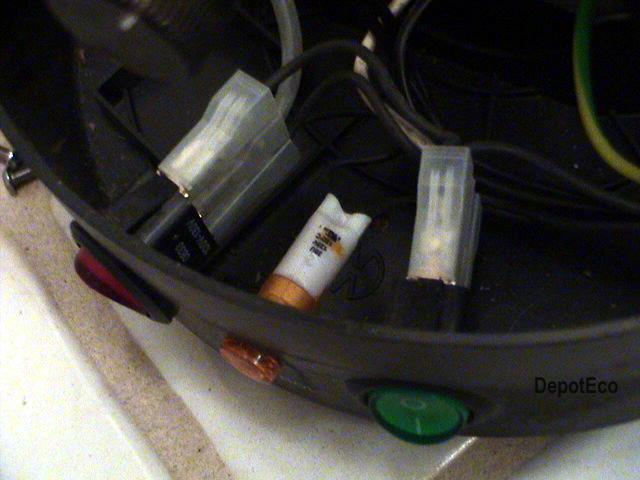

This switch has a lamp in it, so it has 3 lugs on it. The switch lugs (Top and Center) look the same. The lamp connects from the center lug and the neutral that connects to the bottom lug, which is a different color. The neutral also connects to the lamp on the front of the unit.
The heater connects to the middle lug, and the hot to the top lug. If you swap the middle and top wires the unit will work, but your switch lamp will always stay on.
They use a security #8 torx screw on the back of the unit. Amazon sell very nice security torx bit sets. I used a pair of needle nose pliers the first time so I could get the part number off the switch. The manufacturer was no help at all.
I see some folks mention a rubber O ring. My 2009 model didn't use one, and this switch looks and fits like the original except for the 0 and 1 on the front of the switch. Since the reviews indicate these die at around 3 years, I bought both the green and the red switches.
This switch has a lamp in it, so it has 3 lugs on it. The switch lugs (Top and Center) look the same. The lamp connects from the center lug and the neutral that connects to the bottom lug, which is a different color. The neutral also connects to the lamp on the front of the unit.
The heater connects to the middle lug, and the hot to the top lug. If you swap the middle and top wires the unit will work, but your switch lamp will always stay on.
They use a security #8 torx screw on the back of the unit. Amazon sell very nice security torx bit sets. I used a pair of needle nose pliers the first time so I could get the part number off the switch. The manufacturer was no help at all.
I see some folks mention a rubber O ring. My 2009 model didn't use one, and this switch looks and fits like the original except for the 0 and 1 on the front of the switch. Since the reviews indicate these die at around 3 years, I bought both the green and the red switches.
Reviewed by Customer Review
on Oct 22, 2014
on Oct 22, 2014
Works like new
My volcano 'air' button broke and i could not find a new switch anywhere. They don't sell them on the volcano website and i did not want to ship my precious volcano to get it fixed and spend a ton of money. I procrastinated fixing it for months when finally i decided to order a new switch from Storz and Bickel. WHY DIDN'T I DO THIS EARLIER? It came very quickly, properly packaged, and so so SO easy to install. Works like new, once again. Don't procrastinate, fix your volcano!!
May 28, 2014
May 28, 2014
Reviewed by sam44
on Dec 16, 2012
on Dec 16, 2012
Perfect Fix for my Broken Volcano Switch
Thank you so much, This switch is the exact right part. easy to install and delivered very fast. Perfect!.
