Volcano Classic Replacement Switch RED SR-06NR-R
Purchase
Price: $8.49
Product ID : SR-06NR-R
Weight: 0.04
Share:
More images
Click to enlarge
Description

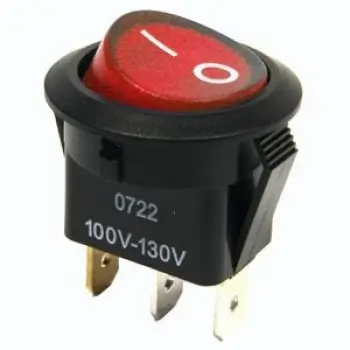

Red Replacement Rocker Switch fits Volcano Classic and Bissell 37603 Vacuums SR-06NR-R 16 A 125 VAC, 8 A 250 VAC

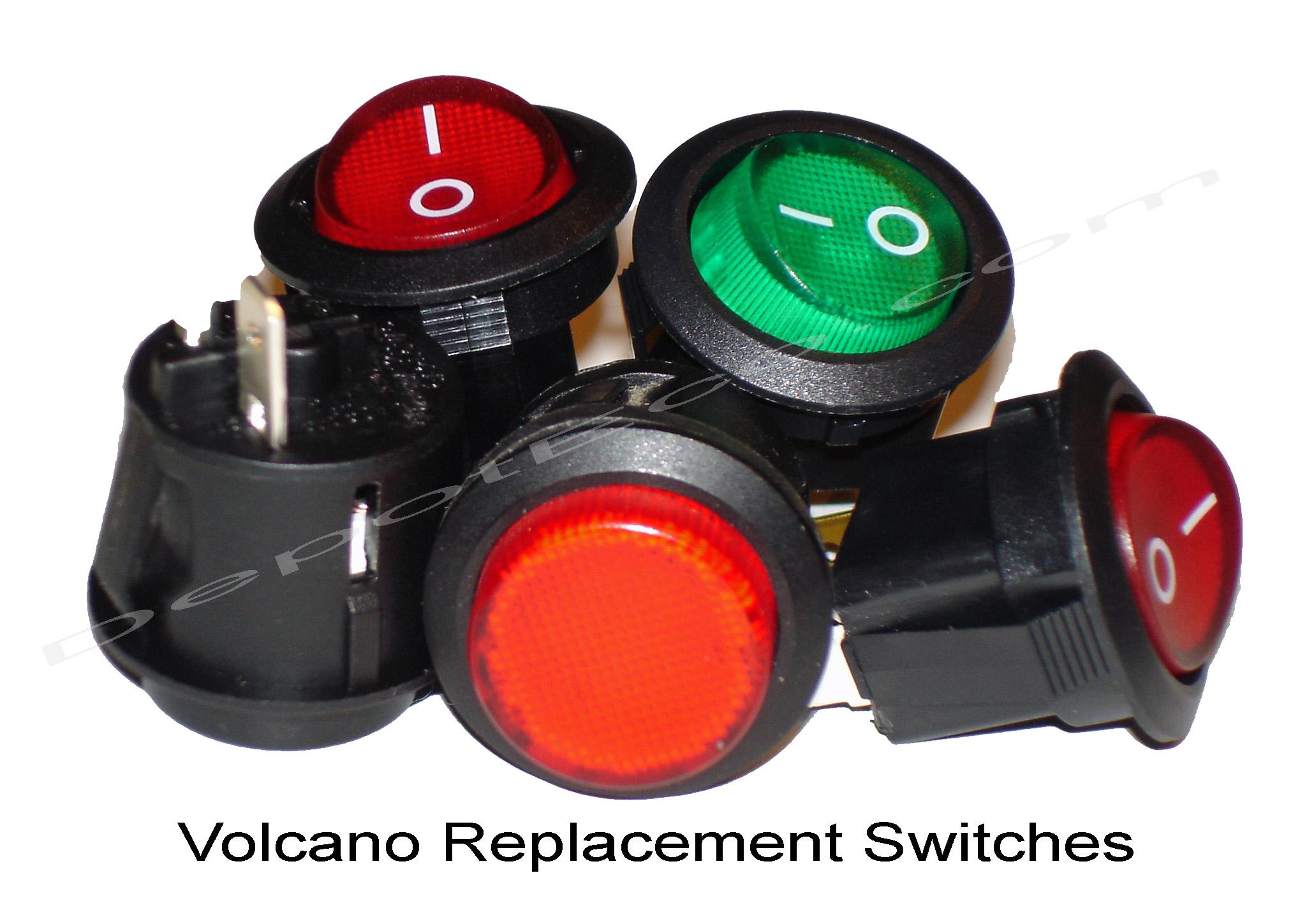

- Red Replacement rocker switch fits Volcano Classic.
Note, Replacement switch top will have on off markings as pictured - Model SR-06NR-R-110V Illuminated rocker switch. OEM SR-06NR model switch as supplied in your unit.
- 16 A 125 VAC, 8 A 250 VAC
- ON - OFF 3 pins - Light 110 VOLTS
- Fits Volcano Classic - this Switch is suitable for Heat or Air replacement locations. Also Found in some Bissell 37603 Vacuums
- Warranty is good for 30 days after your receipt. Please contact us if you need a replacement with in the 30 days.

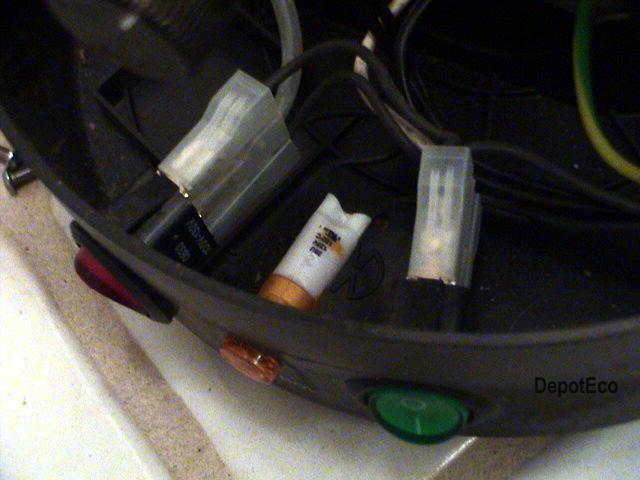

Replacement Rocker Switch for your Volcano Classic. Illuminated rocker switch 16 A 125 VAC Easy Replacement at home no need to ship off your Volcano, Simply pop out your broken switch, pop in your new switch and plug in the 3 wires. You will be up and running in minutes.
Note, this item is not authorized for resale without our prior written consent. Please beware of imposters selling our wares, buy your Volcano replacement switch from DepotEco.
See Link Below for installation.
Volcano Switch Replacement Instructions Click To Read.

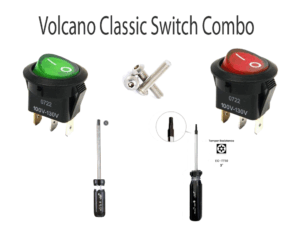

You will need a Torx screwdriver tool to remove the case screws. Older Volcano units shipped with T8 Torx Screws and then began shipping with T8 Security Torx screws. Newer units also now ship with a T10 Security Torx screw.
(Please verify your screw types T8 or T10)
CSA Standards
Certified to CAN / CSA C22.2 No. 55:This is the switch standard for Canada designed to go into other low voltage (below 600V) appliances. This receive the “CSA Mark” or if combined with a USA approval, the “cCSAus Mark”.
Certified to ANSI / UL 1054:
This is the switch standard for the USA for UL recognized component switches designed for low voltage (below 600V) appliances. This will get the “CSAus mark” or if combined with a Canada approval, the “cCSAus Mark”.
Video
Product Reviews
Login or Register to write a review.
Reviewed by jsbach64
on Jul 22, 2020
on Jul 22, 2020
Major Wallet Saver
My volcano classic has been going strong for 6-7 years until the power button gave out recently. I was skeptical about this replacement, but it's worth a shot before buying a new one for $500.
It works perfectly! Video was even very helpful to install, the whole process took about 10 minutes before I was back up and running.
It works perfectly! Video was even very helpful to install, the whole process took about 10 minutes before I was back up and running.
Reviewed by Hannahrene7
on Dec 11, 2019
on Dec 11, 2019
Do or do not. There is no try.
Fits perfect! The video also helps make the whole process simple, easy and affordable
Reviewed by Hannahrene7
on Dec 11, 2019
on Dec 11, 2019
Do or do not. There is no try.
Fits perfect! The video also helps make the whole process simple, easy and affordable
Reviewed by Customer Review
on Apr 19, 2018
on Apr 19, 2018
It works and fits the stock housing
Hunter A.
November 6, 2017
It works and fits the stock housing, same fit as OEM
November 6, 2017
It works and fits the stock housing, same fit as OEM
Reviewed by Customer Review
on Apr 19, 2018
on Apr 19, 2018
switch arrived as ordered, easy to install
Steve in Atlanta
January 30, 2014

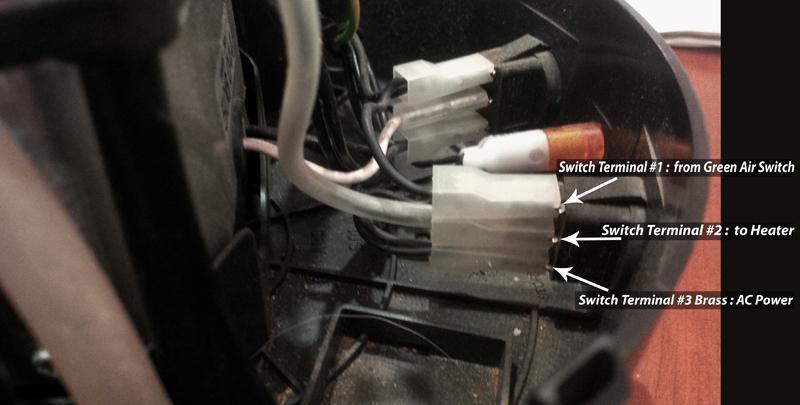

The switch was a exact replacement for the volcano and easy to install. To keep track of the connections I numbered them 1,2,3 as I removed them from the old switch. I had to gently pry the out switch out the front with a thin slotted screw driver after disconnecting the wires.
January 30, 2014
The switch was a exact replacement for the volcano and easy to install. To keep track of the connections I numbered them 1,2,3 as I removed them from the old switch. I had to gently pry the out switch out the front with a thin slotted screw driver after disconnecting the wires.
Reviewed by Customer Review
on Apr 19, 2018
on Apr 19, 2018
works great
ByBalance776
January 27, 2015
Finally had to use one of these spare switches, and am happy to report it works exactly as intended.
The old switch was a bear to remove (not surprising), but this replacement popped right in and I was able to connect it with no problems.
January 27, 2015
Finally had to use one of these spare switches, and am happy to report it works exactly as intended.
The old switch was a bear to remove (not surprising), but this replacement popped right in and I was able to connect it with no problems.
Reviewed by Customer Review
on Apr 19, 2018
on Apr 19, 2018
Five Stars
Renee Hoffmanon
December 30, 2016
Perfect replacement hot switch packed well works came fast !!!!!!
December 30, 2016
Perfect replacement hot switch packed well works came fast !!!!!!
Reviewed by Customer Review
on Apr 19, 2018
on Apr 19, 2018
Perfect Volcano Vaporizer replacement!
ByTrip.fontaineon
November 6, 2012
This is the perfect replacement for a Volcano Vaporizer (circa 2008) rocker switch. Both my HEAT and AIR buttons went lame after about 4 years of 365 day use. They would still switch on and off, but I'd have to keep pressure to one side, and be gentle. Enough of that nonsense...
FOLLOW THESE INSTRUCTIONS
1. Use a size 8 Torx security bit to remove the screws, and remove the stainless steel cover. Be gentle. Mine had a wire attached at the back, only allowing me to remove it so far.
2. Remove the wires from the male ends of the old rocker switch. This took me quite a while, and it became clear that they didn't want the average Joe messing with it. So I used an exact-o blade to cut the plastic housings covering the connection point. Then I was able to use needle nose pliers to remove the wires at the connection point. I kept the plastic housing to put back on after.
3. Remove old rocker switch. I just broke the plastic spring piece to get it out. You can remove it and keep it in tact, but its much more difficult and involves a lot of awkwardly placed finger pressure. Pop the old one out, but don't throw it out yet!
4. **IMPORTANT** Remove the BLACK RUBBER RING from your old switch. The new ones (however awesome) DON'T have them, so it's a keeper, and worth its weight in gold. Now place it on the new rocker switch. It will fit like a dream only because of this o-ring piece.
5. Make sure you have your switch facing the right direction, because you only get one shot at the next part. Pop it in, and attach the wire connections CORRECTLY!
6. Use something wet to clean all the dust from the inside of the machine, and thank your lucky stars. You just gave your Volcano Vaporizer another 4 years of life. I love you Germany. I love you for producing the BMW of Vaporizers...
November 6, 2012
This is the perfect replacement for a Volcano Vaporizer (circa 2008) rocker switch. Both my HEAT and AIR buttons went lame after about 4 years of 365 day use. They would still switch on and off, but I'd have to keep pressure to one side, and be gentle. Enough of that nonsense...
FOLLOW THESE INSTRUCTIONS
1. Use a size 8 Torx security bit to remove the screws, and remove the stainless steel cover. Be gentle. Mine had a wire attached at the back, only allowing me to remove it so far.
2. Remove the wires from the male ends of the old rocker switch. This took me quite a while, and it became clear that they didn't want the average Joe messing with it. So I used an exact-o blade to cut the plastic housings covering the connection point. Then I was able to use needle nose pliers to remove the wires at the connection point. I kept the plastic housing to put back on after.
3. Remove old rocker switch. I just broke the plastic spring piece to get it out. You can remove it and keep it in tact, but its much more difficult and involves a lot of awkwardly placed finger pressure. Pop the old one out, but don't throw it out yet!
4. **IMPORTANT** Remove the BLACK RUBBER RING from your old switch. The new ones (however awesome) DON'T have them, so it's a keeper, and worth its weight in gold. Now place it on the new rocker switch. It will fit like a dream only because of this o-ring piece.
5. Make sure you have your switch facing the right direction, because you only get one shot at the next part. Pop it in, and attach the wire connections CORRECTLY!
6. Use something wet to clean all the dust from the inside of the machine, and thank your lucky stars. You just gave your Volcano Vaporizer another 4 years of life. I love you Germany. I love you for producing the BMW of Vaporizers...
Reviewed by Jay1
on Dec 31, 2012
on Dec 31, 2012
Perfect replacement for volcano
Perfect replacement for volcano was easy to install and great price it was also here pretty quick two or three days
