Volcano Digit Replacement Switch RED R13-527-R

Purchase

Price: $9.99
Product ID : R13-527-R
Weight: 0.05
Min/Max Order: 1 / 3

More images

Click to enlarge

Description

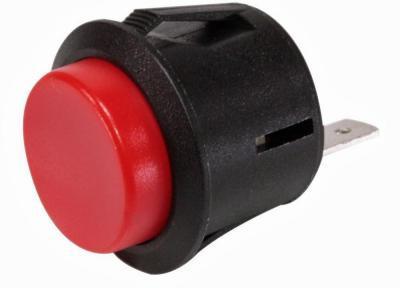

RED Replacement Momentary Heat Switch fits Volcano Digit and Bissell Vacuums
R13-527-R 10 Amp 125 VAC, 6 Amp 250 VAC

    • Red Replacement momentary switch fits Volcano Digit.
      Note, Replacement switch top will have solid color top as pictured
    • Model R13-527-R
    • 10 A 125 VAC, 6 A 250 VAC
    • Momentary ON 2 pins - Cap Color Red

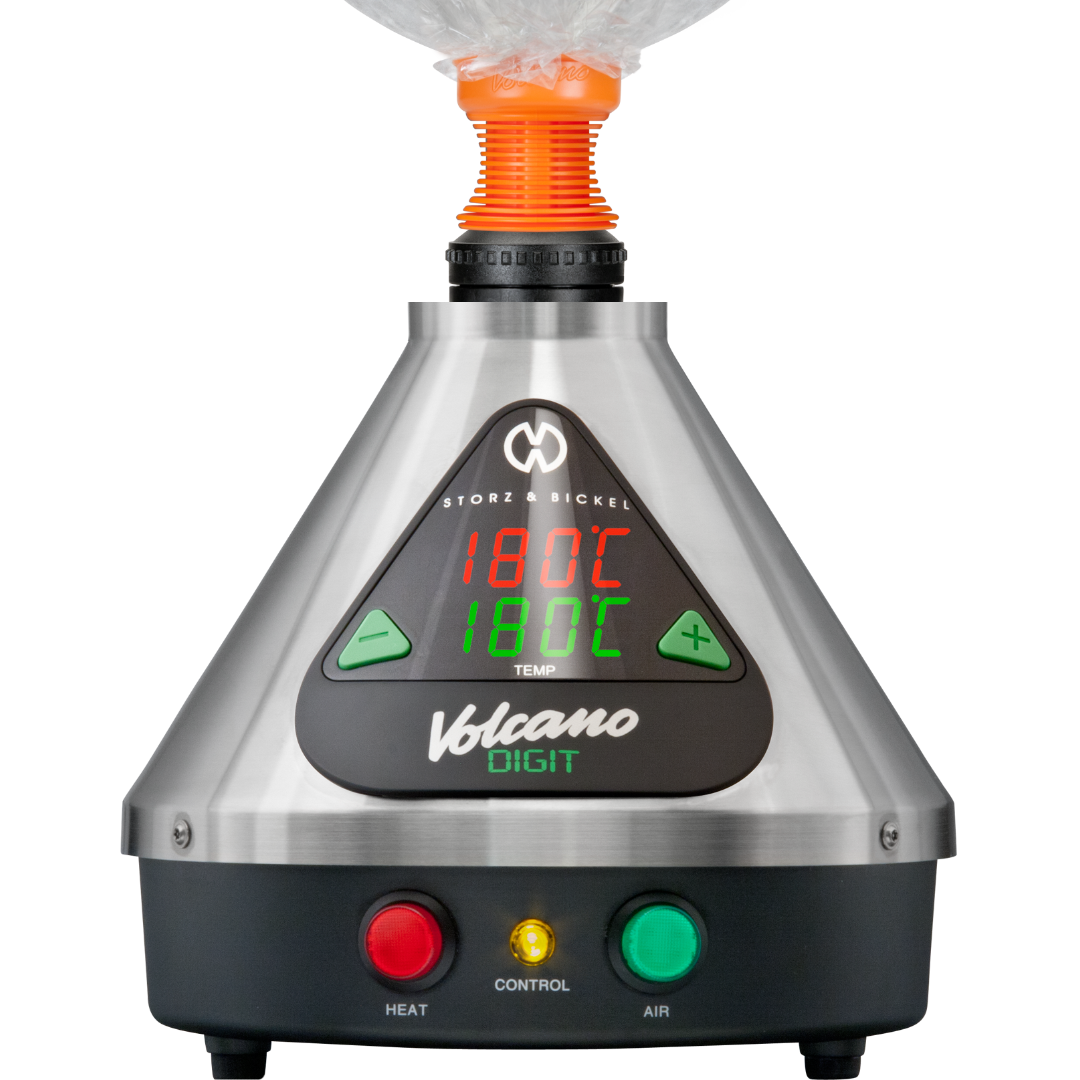

    • Fits Storz & Bickel Volcano Digit - Also Found in some Bissell Vacuums
    • Warranty is good for 30 days after your receipt. Please contact us if you need a replacement with in the 30 days.

Replacement Momentary Switch for your Volcano Digit. Red momentary on switch 10 A 125 VAC.  Easy Replacement at home no need to ship off your Volcano, Simply pop out your broken switch, pop in your new switch and plug in the 2 wires. You will be up and running in minutes.

Note, this item is not authorized for resale without our prior written consent.  Please beware of imposters selling our wares, buy your Volcano replacement switch from DepotEco.

See Link Below for installation tips.

Volcano Switch Replacement Instructions Click To Read.

You will need a Torx screwdriver tool to remove the case screws. Older Volcano units shipped with T8 Torx Screws and then began shipping with T8 Security Torx screws. Newer units also now ship with a T10 Security Torx screw.

(Please verify your screw types T8 or T10)


CSA Standards

Certified to CAN / CSA C22.2 No. 55:

This is the switch standard for Canada designed to go into other low voltage (below 600V) appliances. This receive the “CSA Mark” or if combined with a USA approval, the “cCSAus Mark”.

Certified to ANSI / UL 1054:
This is the switch standard for the USA for UL recognized component switches designed for low voltage (below 600V) appliances.  This will get the “CSAus mark” or if combined with a Canada approval, the “cCSAus Mark”.
